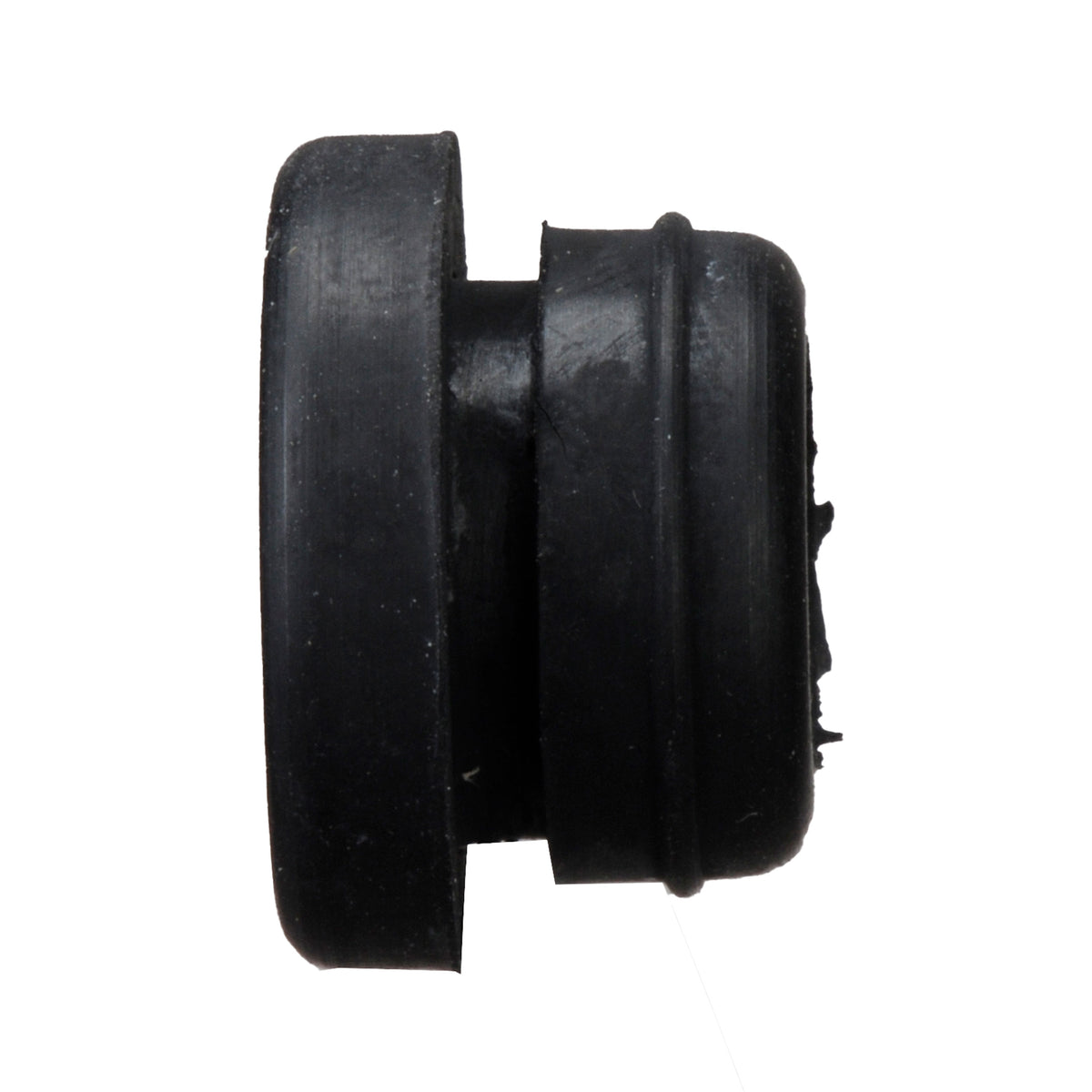

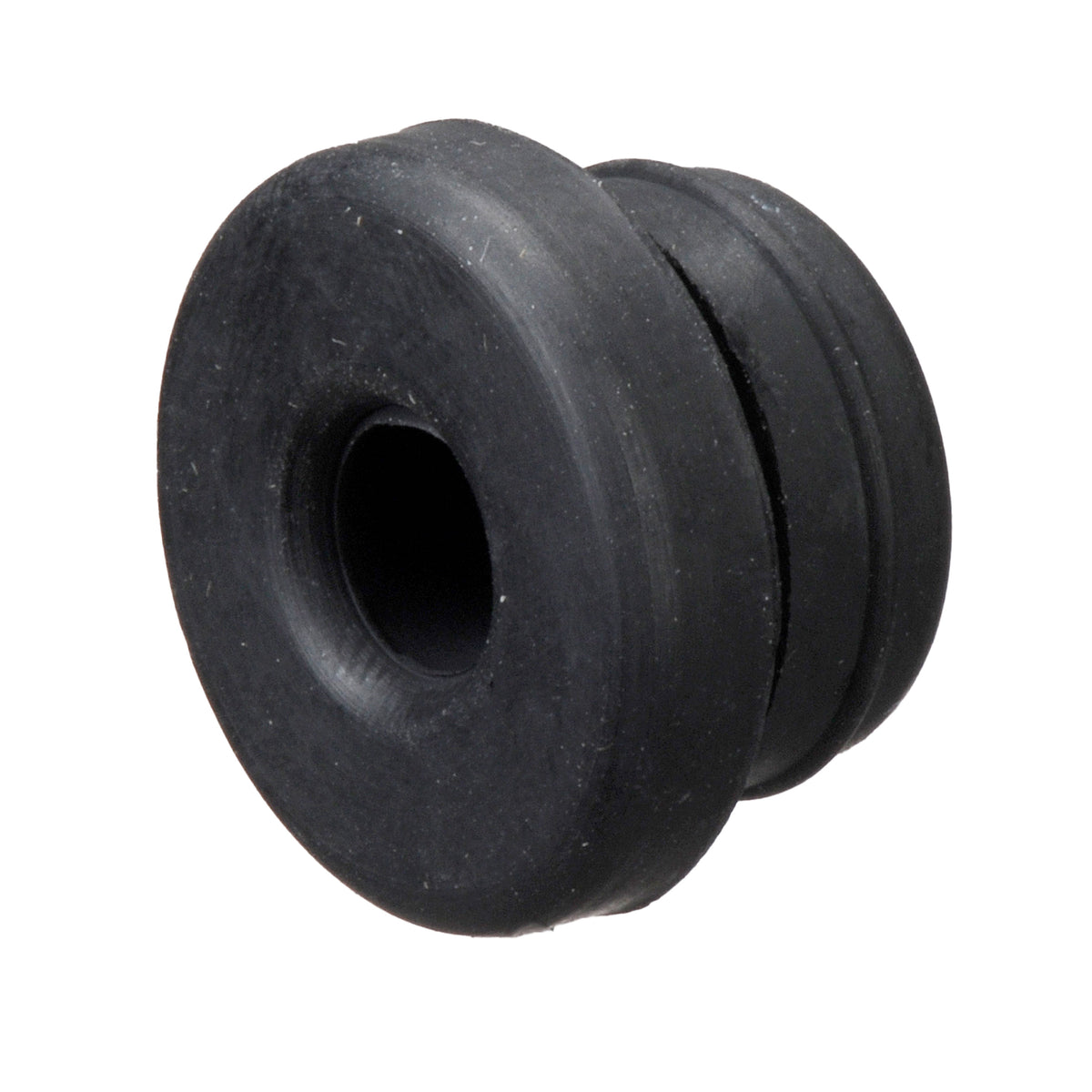

1967-1979 VW Brake Fluid Reservoir Grommet - 113611817A

A solid brake system depends on the little seals just as much as the big parts. This brake fluid reservoir grommet fits into the top of the master cylinder and seals the plastic feed line that supplies brake fluid from the reservoir. Over the years, the original rubber can harden, crack, shrink, or simply stop sealing like it should, opening the door to brake fluid leaks and air getting into the system. Replacing a tired grommet with a correct-fit piece helps keep the connection tight, the fluid where it belongs, and your VW's hydraulic brake system working properly. At just 17 mm tall, it may be one of the smallest parts in your brake job, but it has an important job to do. Whether you're rebuilding the system, replacing a master cylinder, or chasing down a stubborn leak, this is one of those inexpensive pieces that's worth replacing while you're already in there.

• Fits 1967-1971 Standard Beetles
• Fits 1971-1979 Super Beetles
• Fits 1967-1971 Karmann Ghias
• Fits 1967-1971 Type 3s
• VW reference part number 113-611-817A
• Seals the brake fluid reservoir feed line at the master cylinder
• Helps prevent brake fluid leaks and air intrusion
• Supports proper hydraulic brake system operation
• Direct-fit replacement for a hardened, cracked, missing, or leaking grommet
• Smart replacement during master cylinder installation, brake service, or restoration
• 18 mm (0.71") outer diameter
• 7 mm (0.28") inner diameter
• 17 mm (0.67") overall height
